Part Number: NPDBLSW-E24/334W / Vendor ID #: 104

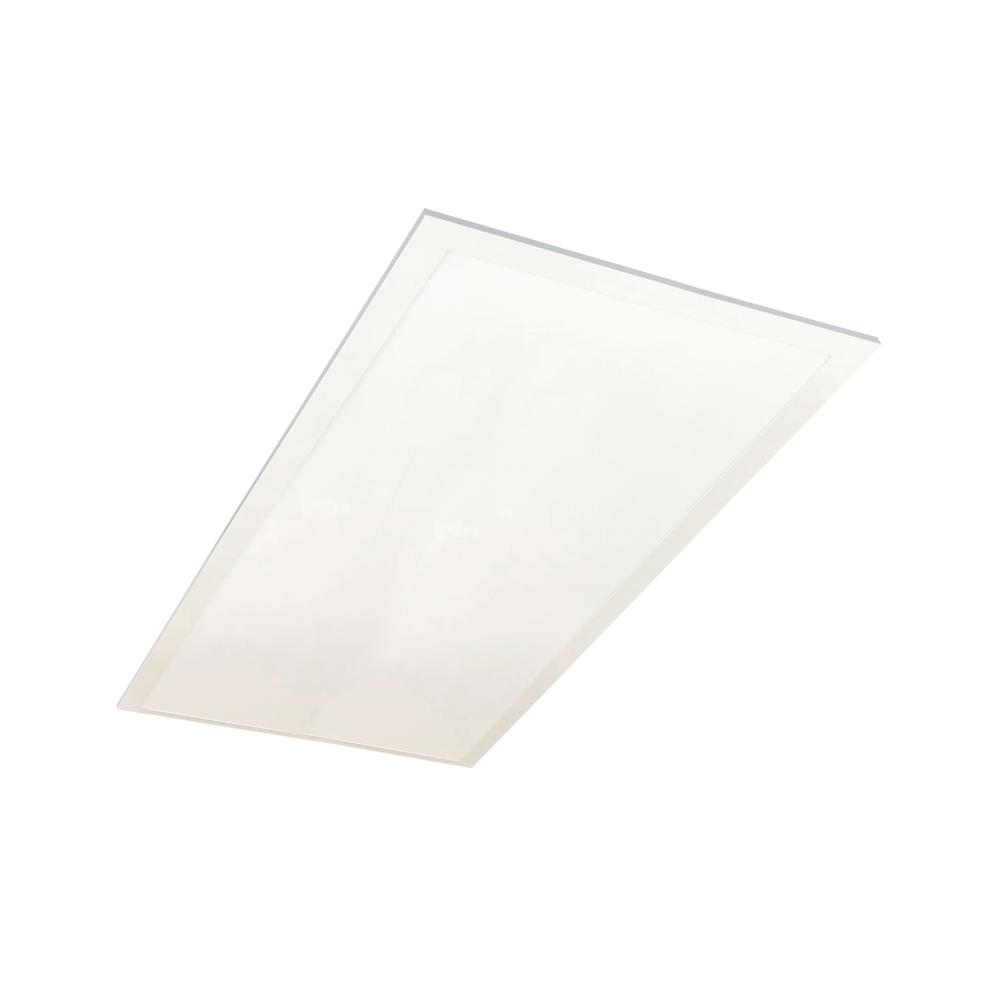

2'x4' LED Backlit Panel with Selectable Lumens & CCT, White Finish
by Nora
Call for Price
Availability
Manufacturer may be Out Of Stock.
Dimensions
Height: 1.50"
Width: 23.75"
Contains Battery: N
Product Overview
2'x4' LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired. The white diffused lens optimizes output while diffusing LED diode image. Each luminaire includes two tunable switches; Selectable Lumens allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance.
Input Voltage: 120-347VAC
Lumens: Selectable Lumens (4602lm to 5707lm)
Wattage: Selectable Wattage (36W to 45W)
Color Temperature: Selectable CCT (3000K / 3500K / 4000K)
Color Rendering Index: 80+ CRI
Dimming: 0-10V
Finish: White
Mounting Accessories: Recessed Kit, Surface Mount Kit or Pendant Mount Kit (ordered separately)
Listing: cULus Listed for Damp Locations
Standard Information
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Accessories
Refinement Options
Category:
Panel
Product Line:
LE24
Est. Shipping Wt.:
26
Length:
47.75
Lumens / Light Output:
Selectable Lumens (4602lm / 5050lm / 5707lm)
Weight:
1.55
CCT:
Selectable CCT (3000K / 3500K / 4000K)
Contains Battery:
N
Country of Origin:
CHN
CRI:
80
DLC Listed:
Yes
Master Box H:
5
Master Box L:
51
Master Box Qty:
2
Master Box W:
26
Master Box Wt.:
26
Product Family:
Panel
Safety Listing:
cULus
Wattage:
Selectable Wattage (36W / 40W / 45W)
